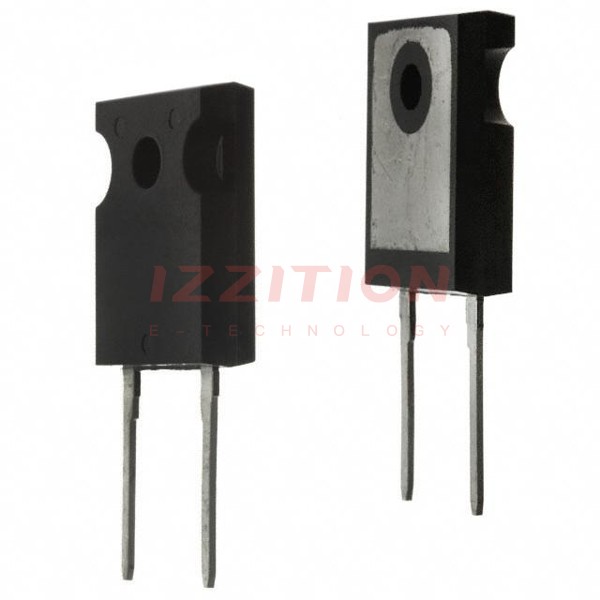

| Part Number | DHG20I1200HA | DHG20I1200PA | DHG30I1200HA | DHG60I1200HA |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Average Rectified (Io) | 20A | 20A | 30A | 60A |
| Voltage - Forward (Vf) (Max) @ If | 2.24 V @ 20 A | 2.7 V @ 20 A | 2.26 V @ 30 A | 2.32 V @ 60 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 200 ns | 75 ns | 200 ns | 200 ns |
| Current - Reverse Leakage @ Vr | 25 µA @ 1200 V | 30 µA @ 1200 V | 50 µA @ 1200 V | 125 µA @ 1200 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-2 | TO-220-2 | TO-247-2 | TO-247-2 |
| Supplier Device Package | TO-247 | TO-220AC | TO-247 | TO-247AD |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
