Please send RFQ , we will respond immediately.

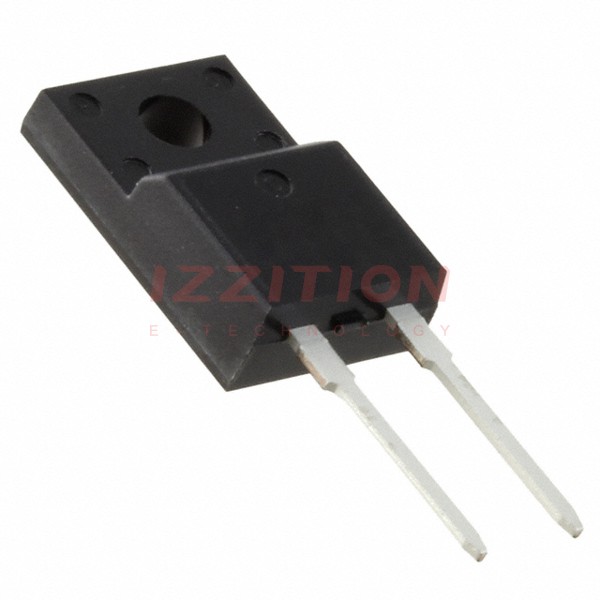

| Part Number | DHG10I1200PM | DHG10I1200PA |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V |
| Current - Average Rectified (Io) | 10A | 10A |
| Voltage - Forward (Vf) (Max) @ If | 2.69 V @ 10 A | 2.22 V @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 75 ns | 200 ns |
| Current - Reverse Leakage @ Vr | 15 µA @ 1200 V | 15 µA @ 1200 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-220-2 Full Pack, Isolated Tab | TO-220-2 |
| Supplier Device Package | TO-220ACFP | TO-220AC |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C |
