IXYS-DH60-18A - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	DH60-18A	DH20-18A	DH40-18A	DH60-14A	DH60-16A
Manufacturer	IXYS	IXYS	IXYS	IXYS	IXYS
Product Status	Active	Active	Active	Active	Active
Diode Type	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	1800 V	1800 V	1800 V	1400 V	1600 V
Current - Average Rectified (Io)	60A	20A	40A	60A	60A
Voltage - Forward (Vf) (Max) @ If	2.04 V @ 60 A	2.24 V @ 20 A	2.7 V @ 40 A	2.04 V @ 60 A	2.04 V @ 60 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	230 ns	300 ns	300 ns	230 ns	230 ns
Current - Reverse Leakage @ Vr	200 µA @ 1800 V	50 µA @ 1800 V	100 µA @ 1800 V	200 µA @ 1200 V	200 µA @ 1400 V
Capacitance @ Vr, F	32pF @ 1200V, 1MHz	-	-	32pF @ 1200V, 1MHz	32pF @ 1200V, 1MHz
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-247-2	TO-247-2	TO-247-2	TO-247-2	TO-247-2
Supplier Device Package	TO-247AD	TO-247	TO-247AD	TO-247AD	TO-247AD
Operating Temperature - Junction	-55°C ~ 150°C	-55°C ~ 150°C	-40°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C

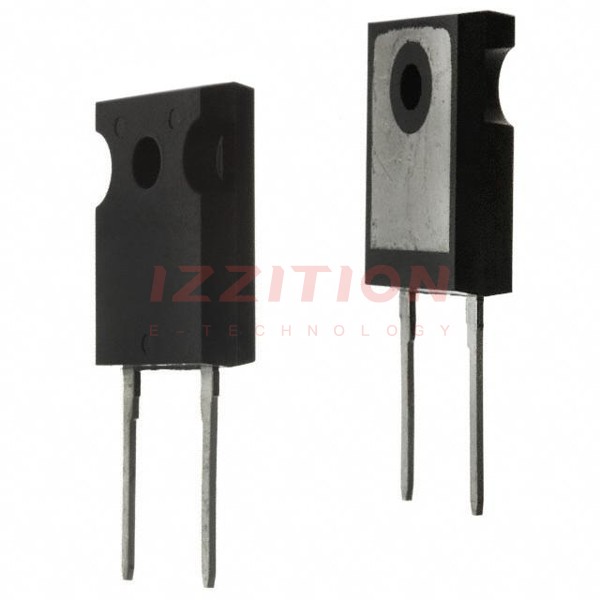

IXYS DH60-18A

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1800 V
Current - Average Rectified (Io):	60A
Voltage - Forward (Vf) (Max) @ If:	2.04 V @ 60 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	230 ns
Current - Reverse Leakage @ Vr:	200 µA @ 1800 V
Capacitance @ Vr, F:	32pF @ 1200V, 1MHz
Mounting Type:	Through Hole
Package / Case:	TO-247-2
Supplier Device Package:	TO-247AD
Operating Temperature - Junction:	-55°C ~ 150°C
