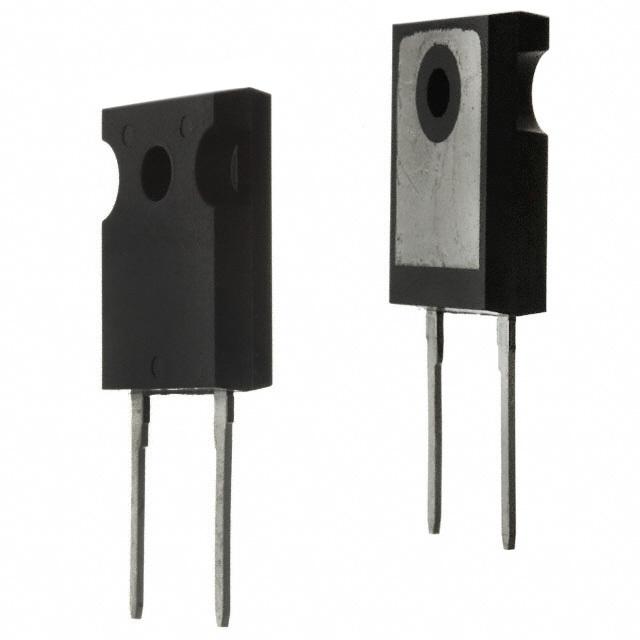

| Part Number | DH20-18A | DH60-18A | DH40-18A |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1800 V | 1800 V | 1800 V |
| Current - Average Rectified (Io) | 20A | 60A | 40A |
| Voltage - Forward (Vf) (Max) @ If | 2.24 V @ 20 A | 2.04 V @ 60 A | 2.7 V @ 40 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 300 ns | 230 ns | 300 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 1800 V | 200 µA @ 1800 V | 100 µA @ 1800 V |
| Capacitance @ Vr, F | - | 32pF @ 1200V, 1MHz | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-2 | TO-247-2 | TO-247-2 |
| Supplier Device Package | TO-247 | TO-247AD | TO-247AD |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -40°C ~ 150°C |
