IXYS-DGS4-025A - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	250 V
Current - Average Rectified (Io):	5.4A
Voltage - Forward (Vf) (Max) @ If:	1.6 V @ 2 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	700 µA @ 250 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-220-2
Supplier Device Package:	TO-220AC
Operating Temperature - Junction:	-55°C ~ 175°C

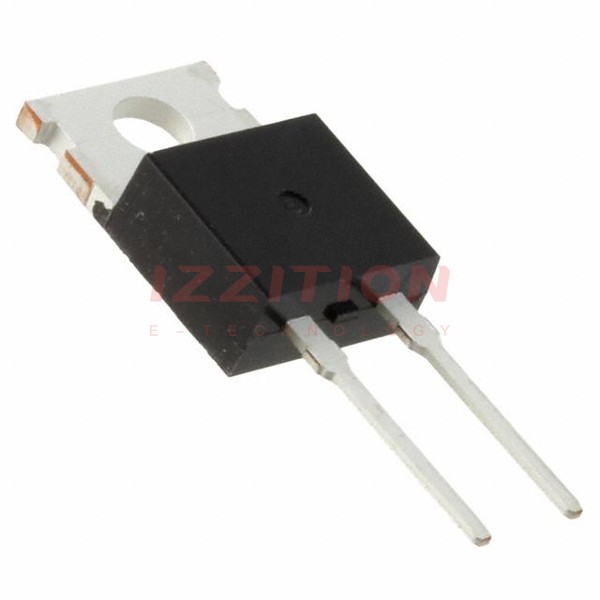

IXYS DGS4-025A
