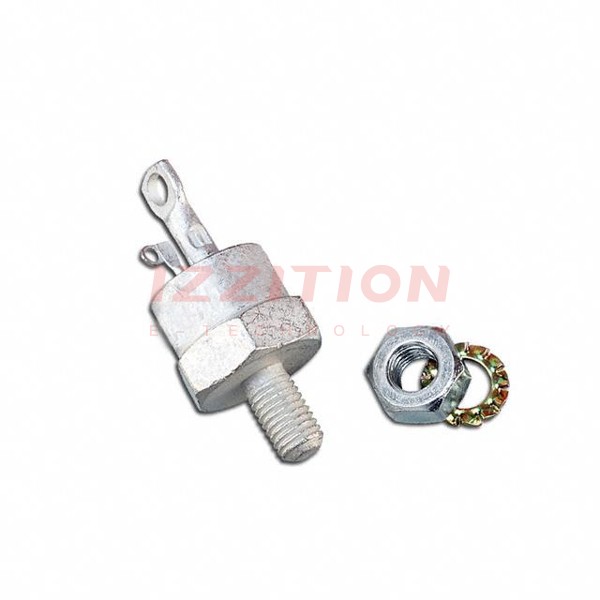

| Part Number | CS35-14IO4 | CS35-12IO4 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Obsolete | Obsolete |
| Voltage - Off State | 1.4 kV | 1.2 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 100 mA | 100 mA |
| Voltage - On State (Vtm) (Max) | 1.5 V | 1.5 V |
| Current - On State (It (AV)) (Max) | 69 A | 69 A |
| Current - On State (It (RMS)) (Max) | 120 A | 120 A |
| Current - Hold (Ih) (Max) | 80 mA | 80 mA |
| Current - Off State (Max) | 10 mA | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1200A, 1340A | 1200A, 1340A |
| SCR Type | Standard Recovery | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount |
| Package / Case | TO-208AC, TO-65-3, Stud | TO-208AC, TO-65-3, Stud |
| Supplier Device Package | TO-208AC (TO-65) | TO-208AC (TO-65) |
