CS20-22MOF1
  • Share:

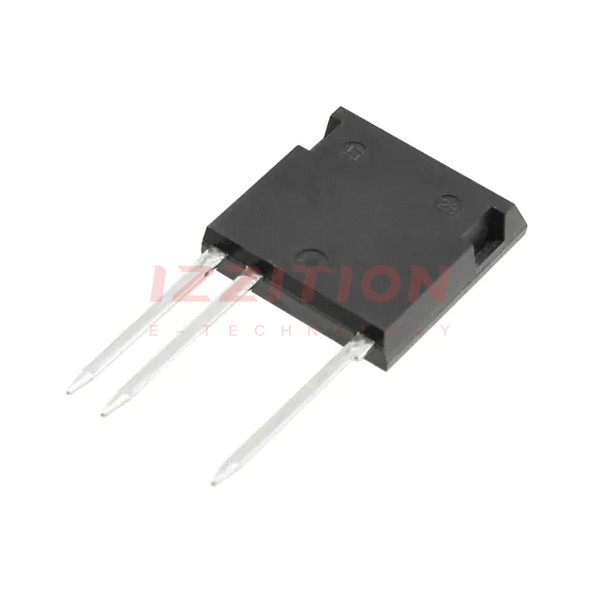

IXYS CS20-22MOF1

Manufacturer No:
CS20-22MOF1
Manufacturer:
IXYS
Package:
Tube
Datasheet:
CS20-22MOF1 Datasheet
ECAD Model:
-
Description:
SCR 2.2KV I4-PAC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Voltage - Off State:2.2 kV
Voltage - Gate Trigger (Vgt) (Max):2.3 V
Current - Gate Trigger (Igt) (Max):250 mA
Voltage - On State (Vtm) (Max):1.5 V
Current - On State (It (AV)) (Max):18 A
Current - On State (It (RMS)) (Max):-
Current - Hold (Ih) (Max):150 mA
Current - Off State (Max):50 µA
Current - Non Rep. Surge 50, 60Hz (Itsm):200A @ 50Hz
SCR Type:Standard Recovery
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Package / Case:i4-Pac™-5 (3 Leads)
Supplier Device Package:ISOPLUS i4-PAC™
0 Remaining View Similar

In Stock

$39.43
24

Please send RFQ , we will respond immediately.
