Please send RFQ , we will respond immediately.

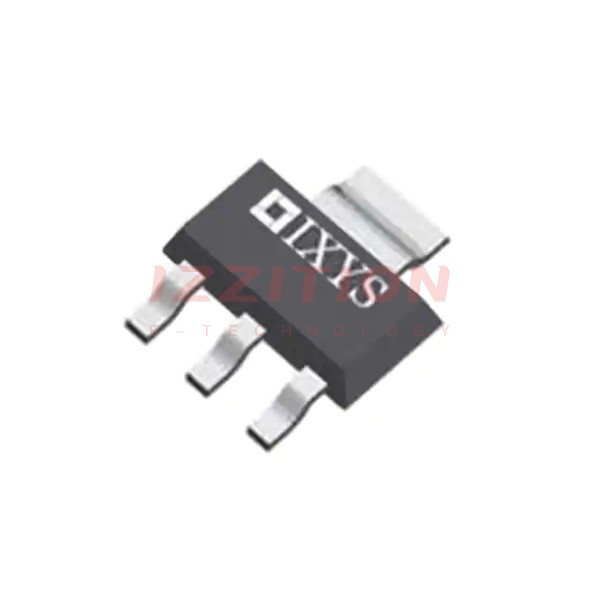

| Part Number | CPC3902ZTR | CPC3909ZTR |
|---|---|---|
| Manufacturer | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V | 400 V |
| Current - Continuous Drain (Id) @ 25°C | - | 300mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 0V | 0V |
| Rds On (Max) @ Id, Vgs | 2.5Ohm @ 300mA, 0V | 9Ohm @ 300mA, 0V |
| Vgs(th) (Max) @ Id | - | - |
| Gate Charge (Qg) (Max) @ Vgs | - | - |
| Vgs (Max) | ±15V | 15V |
| Input Capacitance (Ciss) (Max) @ Vds | 230 pF @ 20 V | - |
| FET Feature | Depletion Mode | Depletion Mode |
| Power Dissipation (Max) | 1.8W (Tc) | 2.5W (Ta) |
| Operating Temperature | -55°C ~ 110°C (TA) | -40°C ~ 110°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-223 | SOT-223 |
| Package / Case | TO-261-4, TO-261AA | TO-261-4, TO-261AA |
