| Part Number | CPC3701CTR | CPC3708CTR | CPC3703CTR |
|---|---|---|---|
| Manufacturer | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 350 V | 250 V |
| Current - Continuous Drain (Id) @ 25°C | - | 5mA (Ta) | 360mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 0V | 0.35V | 0V |
| Rds On (Max) @ Id, Vgs | 1Ohm @ 300mA, 0V | 14Ohm @ 50mA, 350mV | 4Ohm @ 200mA, 0V |
| Vgs(th) (Max) @ Id | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | - | - | - |
| Vgs (Max) | ±15V | ±20V | ±15V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 300 pF @ 0 V | 350 pF @ 25 V |
| FET Feature | Depletion Mode | Depletion Mode | Depletion Mode |
| Power Dissipation (Max) | 1.1W (Ta) | 1.1W (Ta) | 1.1W (Ta) |
| Operating Temperature | -55°C ~ 125°C (TJ) | -40°C ~ 110°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

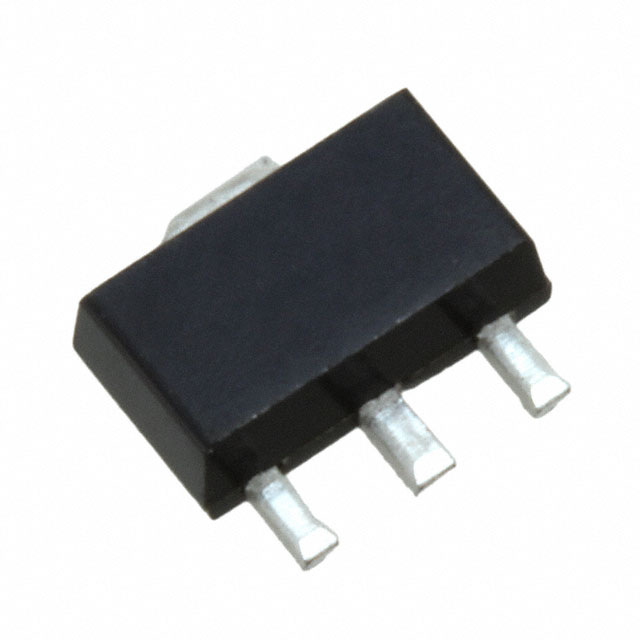

| Supplier Device Package | SOT-89 | SOT-89 | SOT-89-3 |
| Package / Case | TO-243AA | TO-243AA | TO-243AA |
