CPC1302GS
  • Share:

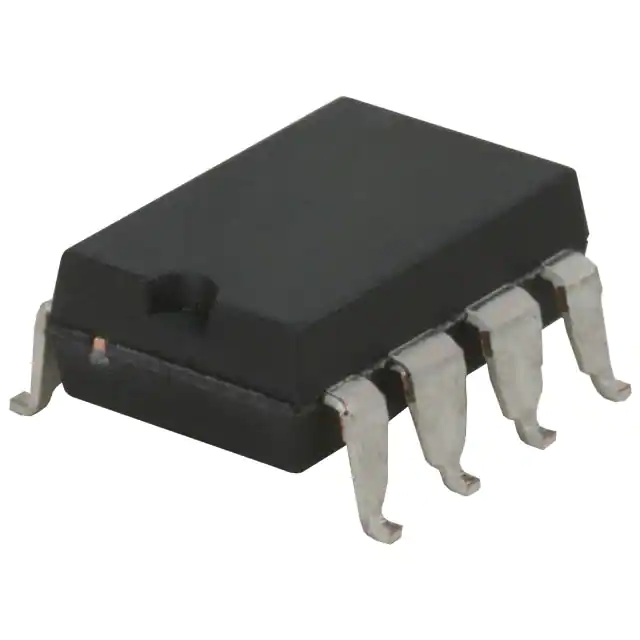

IXYS Integrated Circuits Division CPC1302GS

Manufacturer No:
CPC1302GS
Manufacturer:
IXYS Integrated Circuits Division
Package:
Tube
Datasheet:
CPC1302GS Datasheet
ECAD Model:
-
Description:
OPTOISOLTR 3.75KV 2CH DARL 8SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:2
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):1000% @ 1mA
Current Transfer Ratio (Max):8000% @ 1mA
Turn On / Turn Off Time (Typ):5µs, 60µs
Rise / Fall Time (Typ):40µs, 5µs
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):350V
Current - Output / Channel:-
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):1 mA
Vce Saturation (Max):1.2V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-SMD
0 Remaining View Similar

In Stock

$3.02
64

Please send RFQ , we will respond immediately.
