CPC1301GRTR
  • Share:

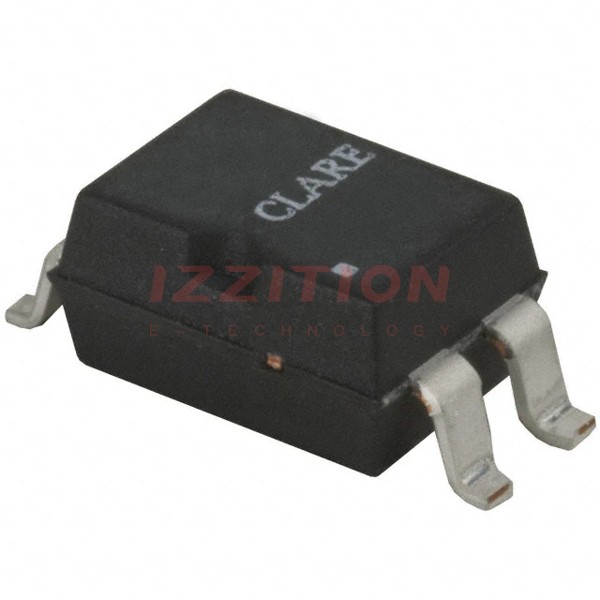

IXYS Integrated Circuits Division CPC1301GRTR

Manufacturer No:
CPC1301GRTR
Manufacturer:
IXYS Integrated Circuits Division
Package:
Tape & Reel (TR)
Datasheet:
CPC1301GRTR Datasheet
ECAD Model:
-
Description:
OPTOISOLTR 5KV DARLINGTON 4-SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):1000% @ 1mA
Current Transfer Ratio (Max):8000% @ 1mA
Turn On / Turn Off Time (Typ):1µs, 80µs
Rise / Fall Time (Typ):40µs, 2.6µs
Input Type:DC
Output Type:Darlington
Voltage - Output (Max):350V
Current - Output / Channel:-
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):1 mA
Vce Saturation (Max):1.2V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SMD
0 Remaining View Similar

In Stock

$2.23
298

Please send RFQ , we will respond immediately.
