CPC1001N
  • Share:

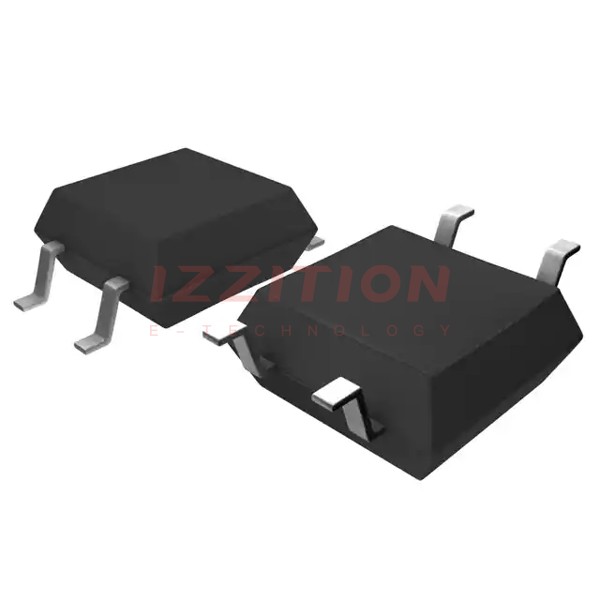

IXYS Integrated Circuits Division CPC1001N

Manufacturer No:
CPC1001N
Manufacturer:
IXYS Integrated Circuits Division
Package:
Tube
Datasheet:
CPC1001N Datasheet
ECAD Model:
-
Description:
OPTOISOLATOR 1.5KV TRANS 4SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:1500Vrms
Current Transfer Ratio (Min):100% @ 200µA
Current Transfer Ratio (Max):800% @ 200µA
Turn On / Turn Off Time (Typ):1µs, 30µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):30V
Current - Output / Channel:-
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):5 mA
Vce Saturation (Max):300mV
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SOP (2.54mm)
0 Remaining View Similar

In Stock

$1.55
213

Please send RFQ , we will respond immediately.
