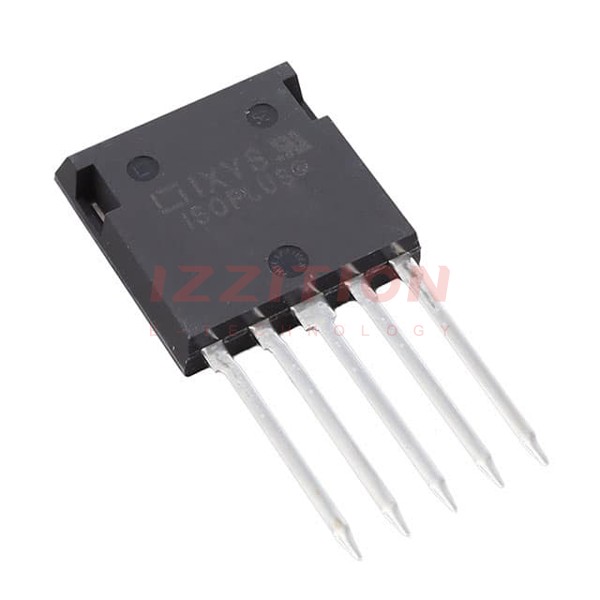

| Part Number | CMA50P1600FC | CMA30P1600FC |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| Structure | Series Connection - All SCRs | Series Connection - All SCRs |
| Number of SCRs, Diodes | 2 SCRs | 2 SCRs |
| Voltage - Off State | 1.6 kV | 1.6 kV |
| Current - On State (It (AV)) (Max) | 50 A | 30 A |
| Current - On State (It (RMS)) (Max) | 79 A | 47 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.4 V | 1 V |
| Current - Gate Trigger (Igt) (Max) | 80 mA | 55 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 720A, 780A | 400A, 430A |
| Current - Hold (Ih) (Max) | 100 mA | 100 mA |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | i4-Pac™-5 | i4-Pac™-5 |
