| Part Number | CLA60MT1200NHB | CLA80MT1200NHB |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| Triac Type | Standard | Standard |
| Voltage - Off State | 1.2 kV | 1.2 kV |
| Current - On State (It (RMS)) (Max) | 66 A | 88 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.7 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 380A, 410A | 480A, 520A |
| Current - Gate Trigger (Igt) (Max) | 60 mA | 70 mA |
| Current - Hold (Ih) (Max) | 60 mA | 70 mA |
| Configuration | Single | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |

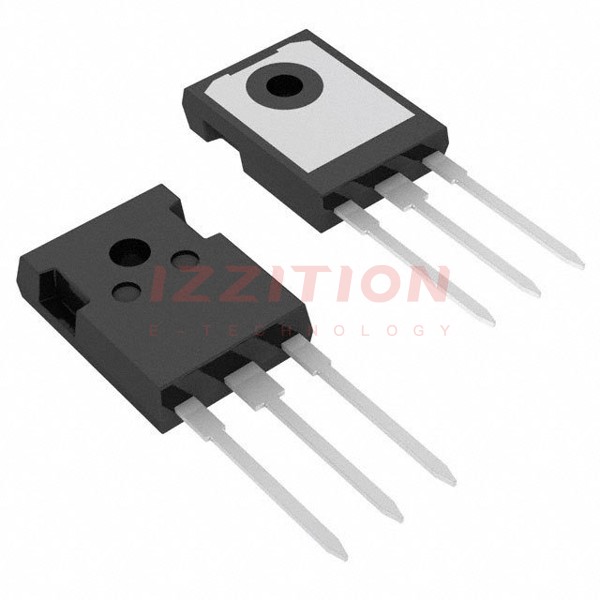

| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247AD | TO-247 (IXTH) |
