| Part Number | CLA40MT1200NPZ-TRL | CLA30MT1200NPZ-TRL |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| Triac Type | Standard | Standard |
| Voltage - Off State | 1.2 kV | 1.2 kV |
| Current - On State (It (RMS)) (Max) | 44 A | 33 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 200A, 215A | 170A, 185A |
| Current - Gate Trigger (Igt) (Max) | 40 mA | 40 mA |
| Current - Hold (Ih) (Max) | 50 mA | 50 mA |
| Configuration | Single | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

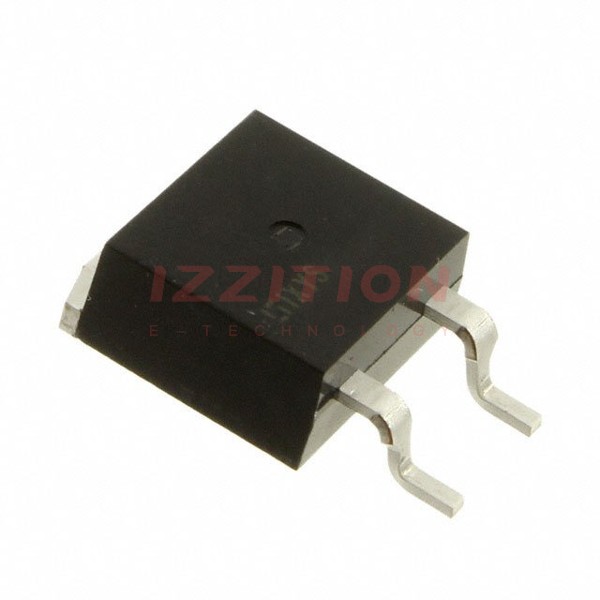

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263HV | TO-263HV |
