Please send RFQ , we will respond immediately.

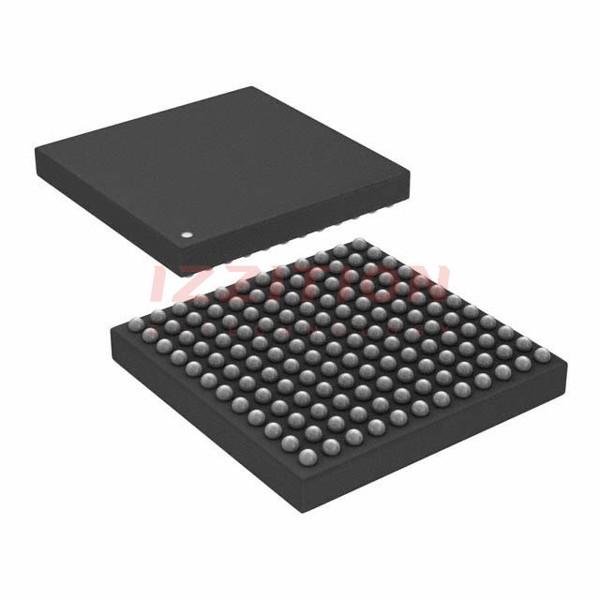

| Part Number | XMC4500E144X1024ACXQSA1 | XMC4500E144F1024ACXQSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 120MHz | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, LINbus, SPI, UART, USB | CANbus, EBI/EMI, Ethernet, I²C, LINbus, SPI, UART, USB |
| Peripherals | DMA, I²S, LED, POR, PWM, WDT | DMA, I²S, LED, POR, PWM, WDT |
| Number of I/O | 91 | 91 |
| Program Memory Size | 1MB (1M x 8) | 1MB (1M x 8) |
| Program Memory Type | Flash | Flash |
| EEPROM Size | - | - |
| RAM Size | 160K x 8 | 160K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.13V ~ 3.63V | 3.13V ~ 3.63V |
| Data Converters | A/D 32x12b; D/A 2x12b | A/D 32x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 144-LFBGA | 144-LFBGA |
| Supplier Device Package | PG-LFBGA-144-10 | PG-LFBGA-144-10 |
