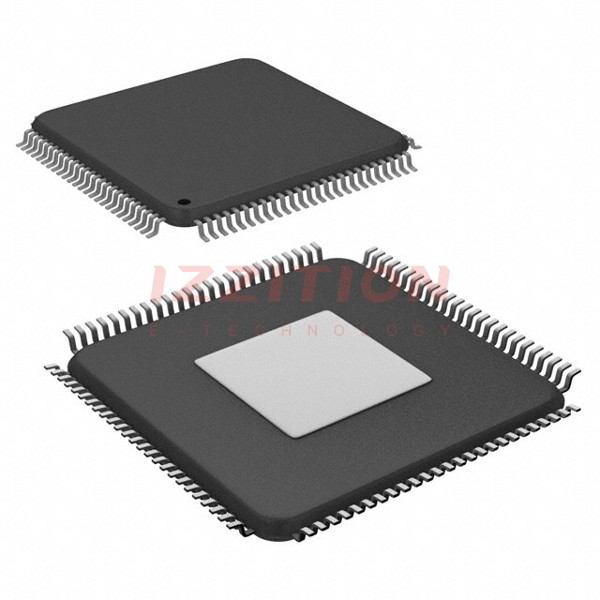

| Part Number | XE164K96F66LACFXQMA1 | XE164K96F66LACFXUMA1 | XE167K96F66LACFXQMA1 | XE164F96F66LACFXQMA1 | XE164G96F66LACFXQMA1 | XE164H96F66LACFXQMA1 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Not For New Designs | Obsolete | Not For New Designs | Not For New Designs | Not For New Designs |
| Core Processor | C166SV2 | C166SV2 | C166SV2 | C166SV2 | C166SV2 | C166SV2 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 66MHz | 66MHz | 66MHz | 66MHz | 66MHz | 66MHz |
| Connectivity | EBI/EMI, I²C, LINbus, SPI, SSC, UART/USART, USI | EBI/EMI, I²C, LINbus, SPI, SSC, UART/USART, USI | EBI/EMI, I²C, LINbus, SPI, SSC, UART/USART, USI | CANbus, EBI/EMI, I²C, LINbus, SPI, SSC, UART/USART, USI | CANbus, EBI/EMI, I²C, LINbus, SPI, SSC, UART/USART, USI | CANbus, EBI/EMI, I²C, LINbus, SPI, SSC, UART/USART, USI |
| Peripherals | I²S, POR, PWM, WDT | I²S, POR, PWM, WDT | I²S, POR, PWM, WDT | I²S, POR, PWM, WDT | I²S, POR, PWM, WDT | I²S, POR, PWM, WDT |
| Number of I/O | 75 | 75 | 118 | 75 | 75 | 75 |
| Program Memory Size | 768KB (768K x 8) | 768KB (768K x 8) | 768KB (768K x 8) | 768KB (768K x 8) | 768KB (768K x 8) | 768KB (768K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 82K x 8 | 82K x 8 | 82K x 8 | 82K x 8 | 82K x 8 | 82K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | A/D 11x10b | A/D 11x10b | A/D 16x10b | A/D 16x10b | A/D 11x10b | A/D 16x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-LQFP Exposed Pad | 100-LQFP Exposed Pad | 144-LQFP Exposed Pad | 100-LQFP Exposed Pad | 100-LQFP Exposed Pad | 100-LQFP Exposed Pad |
| Supplier Device Package | PG-LQFP-100-3 | PG-LQFP-100-3 | PG-LQFP-144-4 | PG-LQFP-100-3 | PG-LQFP-100-3 | PG-LQFP-100-8 |
