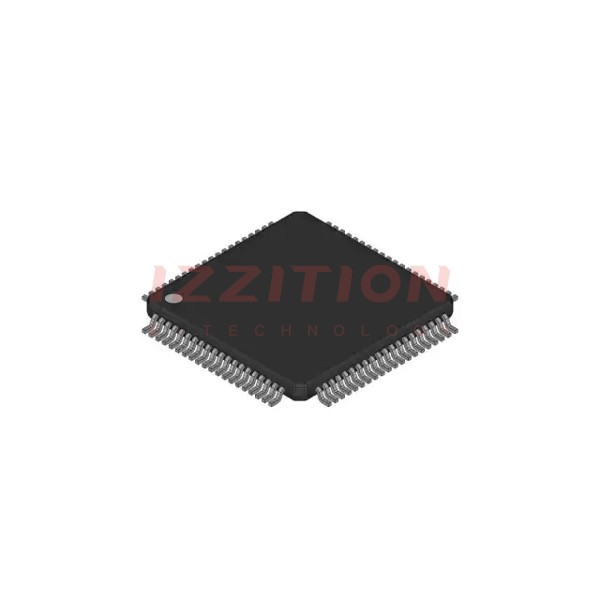

| Part Number | XC2788X136F128LAAKXUMA1 | XC2788X136F128LRAAKXUMA1 | XC2768X136F128LAAKXUMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Not For New Designs | Obsolete |
| Core Processor | C166SV2 | C166SV2 | C166SV2 |
| Core Size | 16/32-Bit | 16/32-Bit | 16/32-Bit |
| Speed | 128MHz | 128MHz | 128MHz |
| Connectivity | CANbus, EBI/EMI, FlexRay, I²C, LINbus, SPI, UART/USART | CANbus, EBI/EMI, FlexRay, I²C, LINbus, SPI, UART/USART | CANbus, EBI/EMI, FlexRay, I²C, LINbus, SPI, UART/USART |
| Peripherals | I²S, POR, PWM, WDT | I²S, POR, PWM, WDT | I²S, POR, PWM, WDT |
| Number of I/O | 118 | 118 | 75 |
| Program Memory Size | 1.06MB (1.06M x 8) | 1.06MB (1.06M x 8) | 1.06MB (1.06M x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | - | - | - |
| RAM Size | 90K x 8 | 90K x 8 | 90K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | A/D 24x12b | A/D 24x12b | A/D 16x12b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | - | Surface Mount | - |
| Package / Case | - | 144-LQFP Exposed Pad | - |
| Supplier Device Package | - | PG-LQFP-144-13 | - |
