| Part Number | XC2268N40F80LABKXUMA1 | XC2268N40F80LRABKXUMA1 | XC2263N40F80LABKXUMA1 | XC2265N40F80LABKXUMA1 | XC2268N40F80LAAKXUMA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Not For New Designs | Obsolete | Obsolete | Obsolete |
| Core Processor | C166SV2 | C166SV2 | C166SV2 | C166SV2 | C166SV2 |
| Core Size | 16/32-Bit | 16/32-Bit | 16/32-Bit | 16/32-Bit | 16/32-Bit |
| Speed | 80MHz | 80MHz | 80MHz | 80MHz | 80MHz |
| Connectivity | CANbus, EBI/EMI, I²C, LINbus, SPI, SSC, UART/USART, USI | CANbus, EBI/EMI, I²C, LINbus, SPI, SSC, UART/USART, USI | CANbus, EBI/EMI, I²C, LINbus, SPI, SSC, UART/USART, USI | CANbus, EBI/EMI, I²C, LINbus, SPI, SSC, UART/USART, USI | CANbus, EBI/EMI, I²C, LINbus, SPI, SSC, UART/USART, USI |
| Peripherals | I²S, POR, PWM, WDT | I²S, POR, PWM, WDT | I²S, POR, PWM, WDT | I²S, POR, PWM, WDT | I²S, POR, PWM, WDT |
| Number of I/O | 76 | 76 | 76 | 76 | 76 |
| Program Memory Size | 320KB (320K x 8) | 320KB (320K x 8) | 320KB (320K x 8) | 320KB (320K x 8) | 320KB (320K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 42K x 8 | 42K x 8 | 42K x 8 | 42K x 8 | 42K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | A/D 16x10b | A/D 16x10b | A/D 16x10b | A/D 16x10b | A/D 16x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

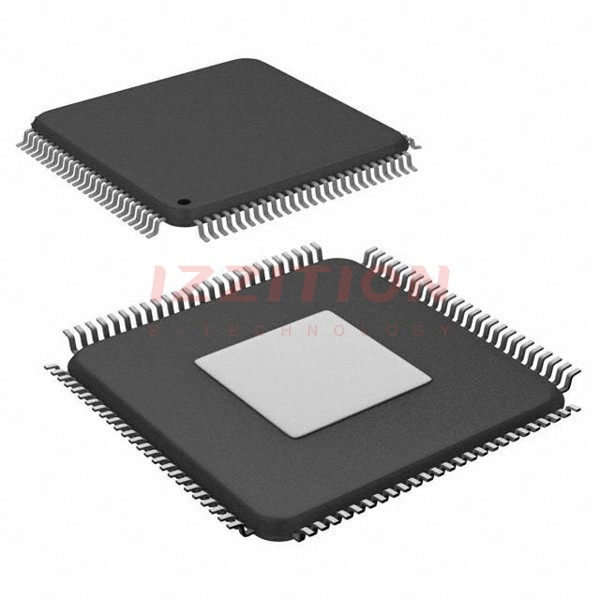

| Package / Case | 100-LQFP Exposed Pad | 100-LQFP Exposed Pad | 100-LQFP Exposed Pad | 100-LQFP Exposed Pad | 100-LQFP Exposed Pad |
| Supplier Device Package | PG-LQFP-100-8 | PG-LQFP-100-8 | PG-LQFP-100-8 | PG-LQFP-100-8 | PG-LQFP-100-8 |
