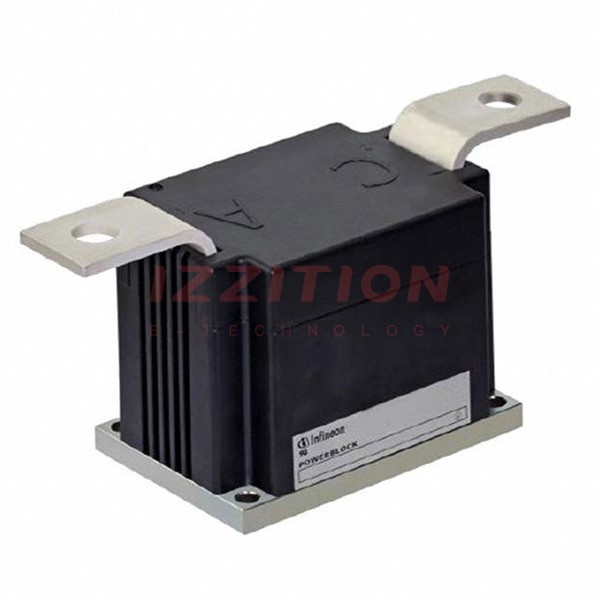

TZ810N22KOFTIMHPSA1 Image
×
Favorite
Compare
Add to RFQ
Share:
Infineon Technologies TZ810N22KOFTIMHPSA1
Manufacturer No:
TZ810N22KOFTIMHPSA1
Manufacturer:
Infineon Technologies
Package:
Tray
Datasheet:
TZ810N22KOFTIMHPSA1 Datasheet
ECAD Model:
-
Description:
SCR MODULE 2200V 1500A MODULE
Delivery:
Payment:
Product Attributes
Structure:
Single
Number of SCRs, Diodes:
1 SCR
Voltage - Off State:
2.2 kV
Current - On State (It (AV)) (Max):
819 A
Current - On State (It (RMS)) (Max):
1500 A
Voltage - Gate Trigger (Vgt) (Max):
2 V
Current - Gate Trigger (Igt) (Max):
250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):
39000A @ 50Hz
Current - Hold (Ih) (Max):
500 mA
Operating Temperature:
125°C (TJ)
Mounting Type:
Chassis Mount
Package / Case:
Module
0
Remaining
View Similar
In Stock
UnitPrice:
$610.43
Quantity:
2
