Please send RFQ , we will respond immediately.

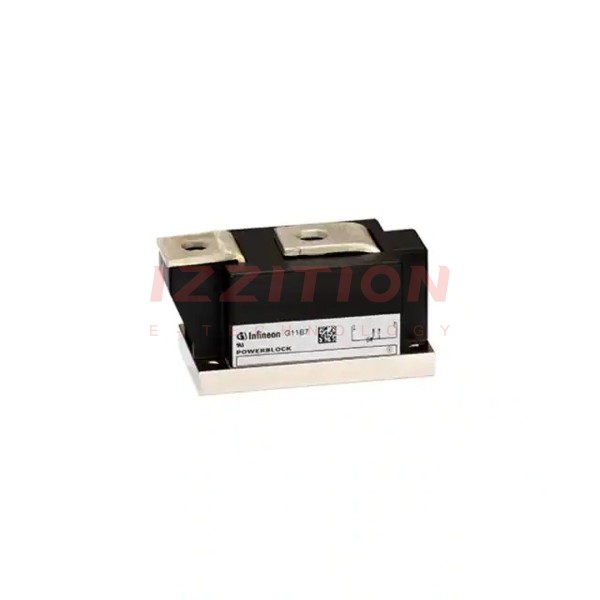

| Part Number | TZ600N12KOFHPSA1 | TZ600N16KOFHPSA1 | TZ600N14KOFHPSA1 | TZ500N12KOFHPSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Last Time Buy | Active | Obsolete | Last Time Buy |
| Structure | Single | Series Connection - All SCRs | Single | Single |
| Number of SCRs, Diodes | 1 SCR | 1 SCR | 1 SCR | 1 SCR |
| Voltage - Off State | 1.2 kV | 1.6 kV | 1.6 kV | 1.2 kV |
| Current - On State (It (AV)) (Max) | 669 A | 669 A | 669 A | 669 A |
| Current - On State (It (RMS)) (Max) | 1050 A | 1050 A | 1050 A | 1050 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.2 V | 2.2 V | 2.2 V | 2.2 V |
| Current - Gate Trigger (Igt) (Max) | 250 mA | 250 mA | 250 mA | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 17A @ 50Hz | - | 17A @ 50Hz | 17A @ 50Hz |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA | 300 mA | 300 mA |
| Operating Temperature | -40°C ~ 135°C | 135°C (TJ) | -40°C ~ 135°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Surface Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module |
