Please send RFQ , we will respond immediately.

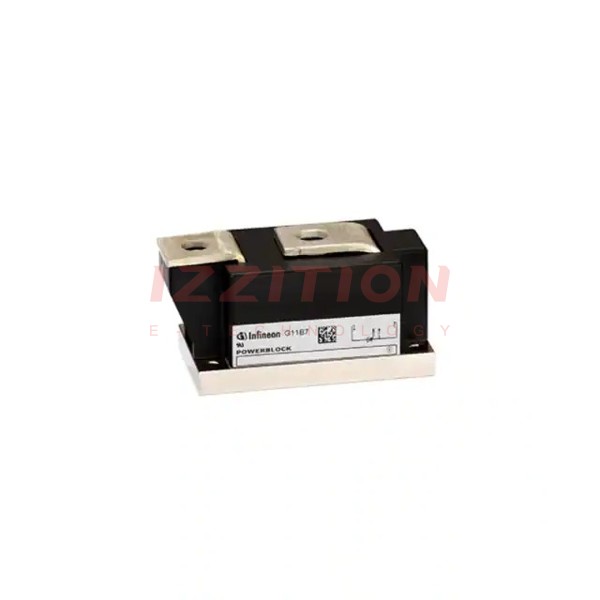

| Part Number | TZ240N36KOFHPSA1 | TZ240N30KOFHPSA1 | TZ240N32KOFHPSA1 | TZ240N34KOFHPSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete | Obsolete | Obsolete |
| Structure | Single | Single | Single | Single |
| Number of SCRs, Diodes | 1 SCR | 1 SCR | 1 SCR | 1 SCR |
| Voltage - Off State | 3.6 kV | 3 kV | 3.2 kV | 3.4 kV |
| Current - On State (It (AV)) (Max) | 240 A | 240 A | 240 A | 240 A |
| Current - On State (It (RMS)) (Max) | 700 A | 700 A | 700 A | 700 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | 1.5 V | 1.5 V | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 250 mA | 250 mA | 250 mA | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 6100A @ 50Hz | 6100A @ 50Hz | 6100A @ 50Hz | 6100A @ 50Hz |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA | 300 mA | 300 mA |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module |
