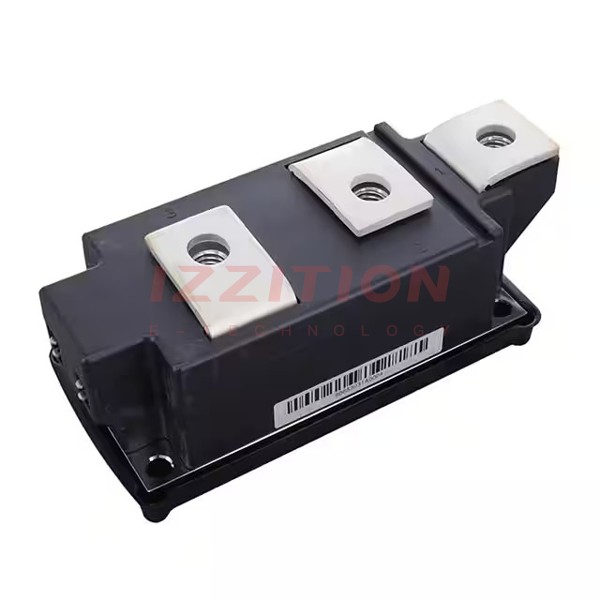

| Part Number | TT700N22KOFTIMHPSA1 | TD700N22KOFTIMHPSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Structure | Series Connection - All SCRs | Series Connection - SCR/Diode |
| Number of SCRs, Diodes | 2 SCRs | 1 SCR, 1 Diode |
| Voltage - Off State | 2.2 kV | 2.2 kV |
| Current - On State (It (AV)) (Max) | 700 A | 700 A |
| Current - On State (It (RMS)) (Max) | 1050 A | 1050 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.2 V | 2.2 V |
| Current - Gate Trigger (Igt) (Max) | 250 mA | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 20400A @ 50Hz | 20400A @ 50Hz |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA |
| Operating Temperature | 135°C (TJ) | 135°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
