Please send RFQ , we will respond immediately.

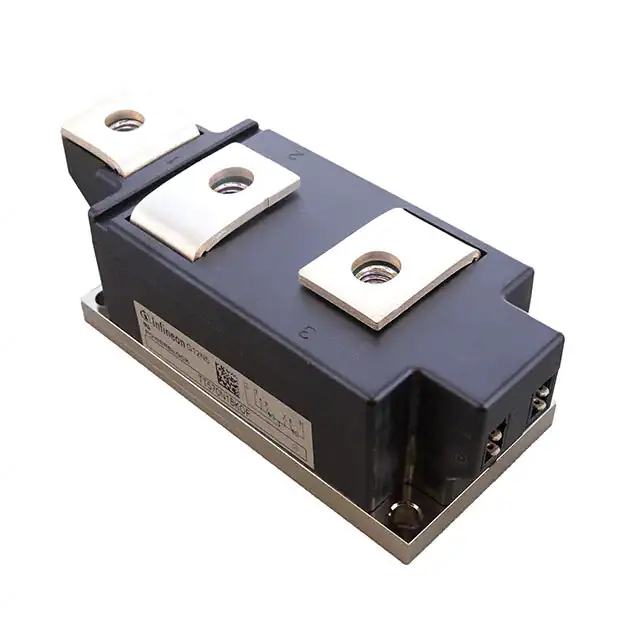

| Part Number | TT570N18KOFHPSA1 | TD570N18KOFHPSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Structure | Series Connection - All SCRs | Series Connection - All SCRs |
| Number of SCRs, Diodes | 2 SCRs | 2 SCRs |
| Voltage - Off State | 1.8 kV | 1.8 kV |
| Current - On State (It (AV)) (Max) | 566 A | 566 A |
| Current - On State (It (RMS)) (Max) | 1050 A | 1050 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 250 mA | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 20000A | 20000A |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA |
| Operating Temperature | 125°C (TJ) | 125°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module |
