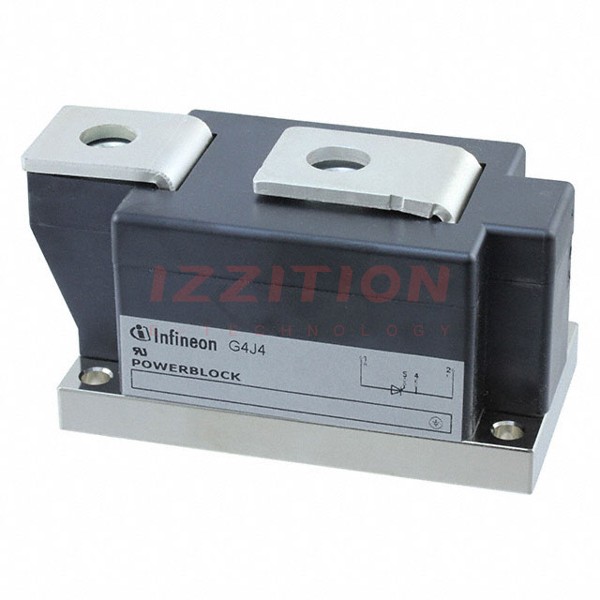

| Part Number | TT330N16KOFHPSA2 | TD330N16KOFHPSA2 | TT330N12KOFHPSA2 | TT330N14KOFHPSA2 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Last Time Buy | Last Time Buy |
| Structure | Series Connection - All SCRs | Series Connection - SCR/Diode | Series Connection - All SCRs | Series Connection - All SCRs |
| Number of SCRs, Diodes | 2 SCRs | 1 SCR, 1 Diode | 2 SCRs | 2 SCRs |
| Voltage - Off State | 1.6 kV | 1.6 kV | 1.6 kV | 1.6 kV |
| Current - On State (It (AV)) (Max) | 330 A | 330 A | 330 A | 330 A |
| Current - On State (It (RMS)) (Max) | 520 A | 520 A | 520 A | 520 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 200 mA | 200 mA | 200 mA | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - | - | 12500A @ 50Hz | 12500A @ 50Hz |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA | 300 mA | 300 mA |
| Operating Temperature | 130°C (TJ) | 130°C (TJ) | -40°C ~ 130°C | -40°C ~ 130°C |
| Mounting Type | Surface Mount | Surface Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module |
