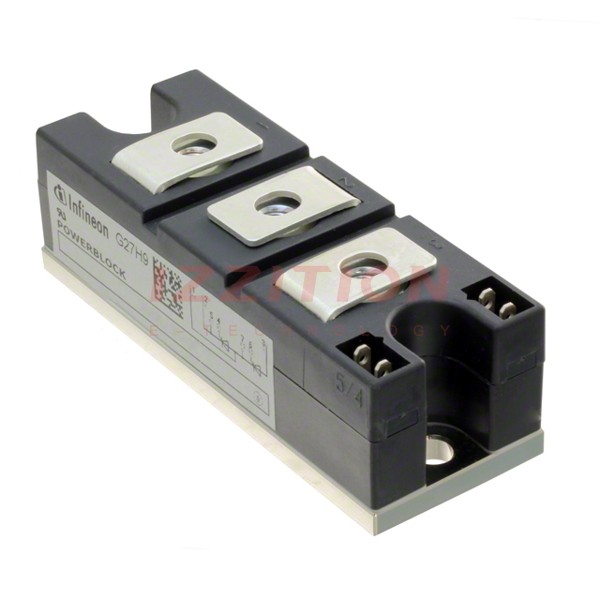

| Part Number | TT180N16KOFHPSA1 | TD180N16KOFHPSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Structure | Series Connection - All SCRs | Series Connection - SCR/Diode |
| Number of SCRs, Diodes | 2 SCRs | 1 SCR, 1 Diode |
| Voltage - Off State | 1.6 kV | 1.6 kV |
| Current - On State (It (AV)) (Max) | 180 A | 180 A |
| Current - On State (It (RMS)) (Max) | 285 A | 285 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 150 mA | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - | - |
| Current - Hold (Ih) (Max) | 200 mA | 200 mA |
| Operating Temperature | 130°C (TJ) | 130°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Module | Module |
