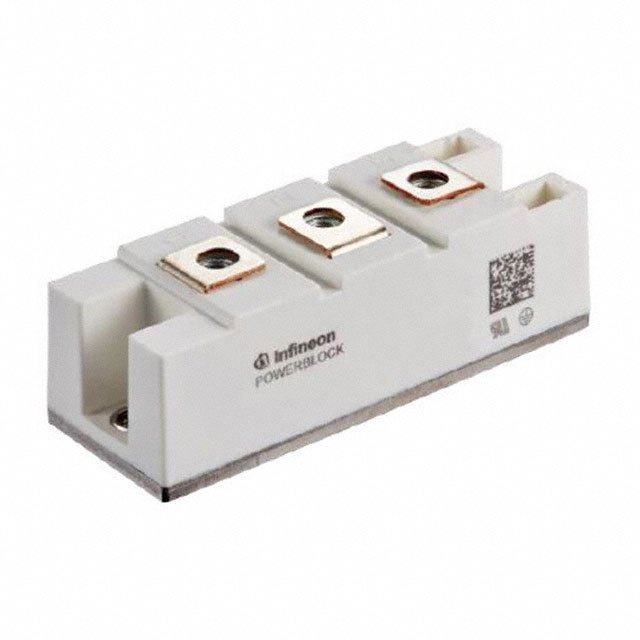

| Part Number | TT160N18SOFHPSA1 | TT190N18SOFHPSA1 | TD160N18SOFHPSA1 | TT160N16SOFHPSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Obsolete | Active |
| Structure | Series Connection - SCR/Diode | Series Connection - SCR/Diode | Series Connection - SCR/Diode | Series Connection - All SCRs |
| Number of SCRs, Diodes | 1 SCR, 1 Diode | 1 SCR, 1 Diode | 1 SCR, 1 Diode | 2 SCRs |
| Voltage - Off State | 1.8 kV | 1.8 kV | 1.8 kV | 1.6 kV |
| Current - On State (It (AV)) (Max) | 160 A | 190 A | 160 A | 160 A |
| Current - On State (It (RMS)) (Max) | 275 A | 275 A | 275 A | 275 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V | 2.5 V | 2.5 V | 2.5 V |
| Current - Gate Trigger (Igt) (Max) | 145 mA | 145 mA | 145 mA | 145 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 5200A @ 50Hz | 5200A @ 50Hz | 5200A @ 50Hz | 5200A @ 50Hz |
| Current - Hold (Ih) (Max) | 200 mA | 200 mA | 200 mA | 200 mA |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | Module | Module | Module |
