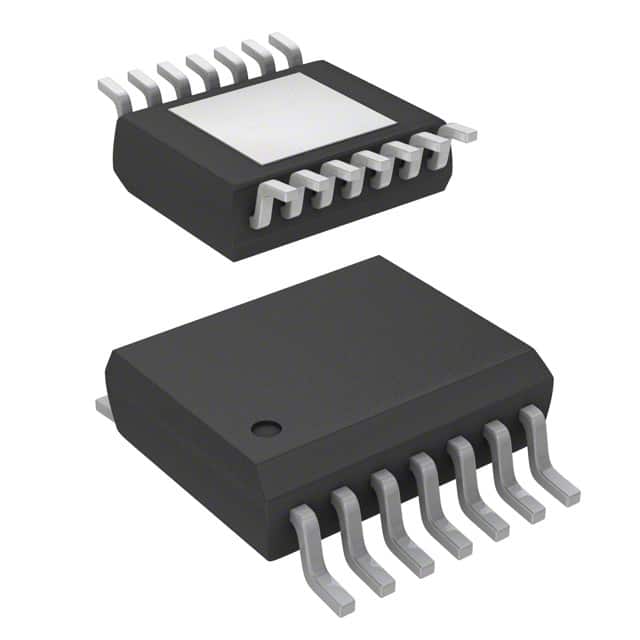

| Part Number | TLS820D0ELV50XUMA1 | TLS820F0ELV50XUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 40V | 40V |
| Voltage - Output (Min/Fixed) | 5V | 5V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.34V @ 200mA | 0.34V @ 200mA |
| Current - Output | 200mA | 200mA |
| Current - Quiescent (Iq) | 5 µA | 5 µA |
| Current - Supply (Max) | 80 µA | 80 µA |
| PSRR | 59dB (100Hz) | 59dB (100Hz) |
| Control Features | Delay, Enable, Reset, Watchdog | Delay, Enable, Reset, Watchdog |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-SSOP-14-5 | PG-SSOP-14-EP |
