| Part Number | TLS202B1MBV33HTSA1 | TLS202B1MBV33HTMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 18V | 18V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.57V @ 150mA | 0.57V @ 150mA |
| Current - Output | 150mA | 150mA |
| Current - Quiescent (Iq) | 75 µA | 75 µA |
| Current - Supply (Max) | 200 µA | 200 µA |
| PSRR | 63dB (10kHz) | 63dB (10kHz) |
| Control Features | - | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

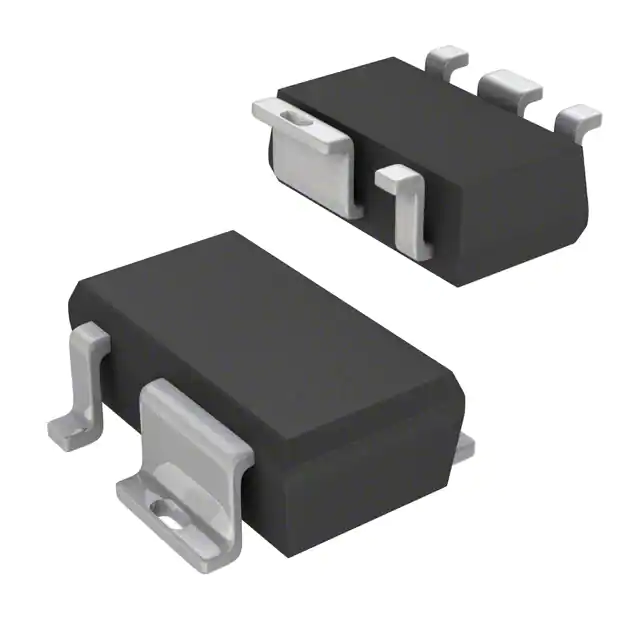

| Package / Case | 6-SMD (5 Leads), Gull Wing | 6-SMD (5 Leads), Gull Wing |
| Supplier Device Package | PG-SCT595-5-1 | PG-SCT595-5-1 |
