| Part Number | TLS115D0EJXUMA1 | TLS115B0EJXUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 45V | 45V |
| Voltage - Output (Min/Fixed) | 2V | 2V |
| Voltage - Output (Max) | 14V | 14V |
| Voltage Dropout (Max) | 0.5V @ 150mA | 0.5V @ 150mA |
| Current - Output | 150mA | 150mA |
| Current - Quiescent (Iq) | 90 µA | 90 µA |
| Current - Supply (Max) | 14 mA | 14 mA |
| PSRR | 85dB (100Hz) | 85dB (100Hz) |
| Control Features | Enable, Power Good | Enable |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

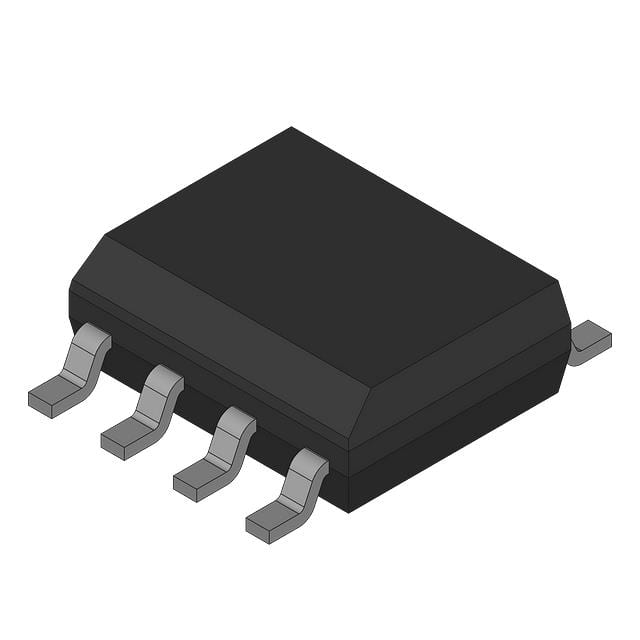

| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-DSO-8 | PG-DSO-8 |
