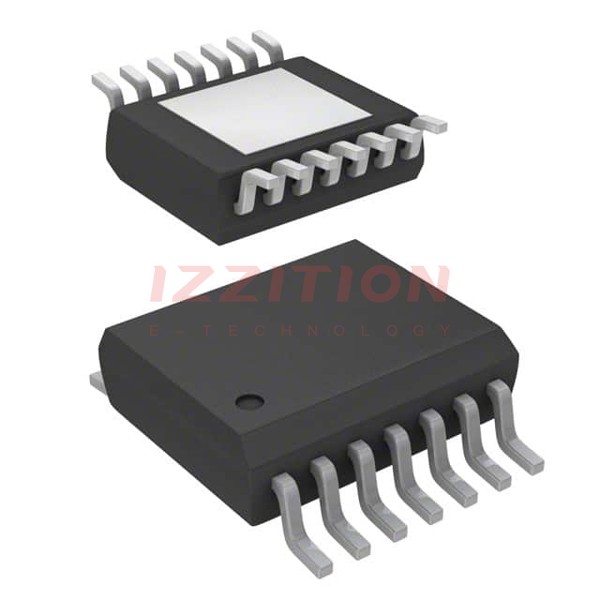

| Part Number | TLF42772ELXUMA1 | TLF42772ELXUMA2 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Discontinued at Digi-Key | Active |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 40V | 40V |
| Voltage - Output (Min/Fixed) | 5V | 5V |
| Voltage - Output (Max) | 12V | 12V |
| Voltage Dropout (Max) | 0.5V @ 200mA | 0.5V @ 200mA |
| Current - Output | 300mA | 300mA |
| Current - Quiescent (Iq) | 200 µA | 200 µA |
| Current - Supply (Max) | 11 mA | 11 mA |
| PSRR | 65dB (100Hz) | 65dB (100Hz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-SSOP-14-EP | PG-SSOP-14-EP |
