Please send RFQ , we will respond immediately.
| Part Number | TLE9853QXXUMA1 | TLE9854QXXUMA1 | TLE9855QXXUMA1 | TLE9850QXXUMA1 | TLE9852QXXUMA1 |
|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Obsolete | Active | Active |
| Core Processor | ARM® Cortex®-M0 | ARM® Cortex®-M0 | ARM® Cortex®-M0 | ARM® Cortex®-M0 | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz |
| Connectivity | LINbus, SSC, UART/USART | LINbus, SSC, UART/USART | LINbus, SSC, UART/USART | LINbus, SSC, UART/USART | LINbus, SSC, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 10 | 10 | 10 | 10 | 10 |
| Program Memory Size | 48KB (48K x 8) | 64KB (64K x 8) | 96KB (96K x 8) | 48KB (48K x 8) | 48KB (48K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| RAM Size | 4K x 8 | 512K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 5.5V ~ 28V | 5.5V ~ 28V | 5.5V ~ 28V | 5.5V ~ 28V | 3V ~ 28V |
| Data Converters | A/D 9x8b, 12x10b | A/D 9x8b, 12x10b | A/D 9x8b, 12x10b | A/D 9x8b, 12x10b | A/D 9x8b, 11x10b |
| Oscillator Type | Internal | Internal | Internal | External, Internal | Internal |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

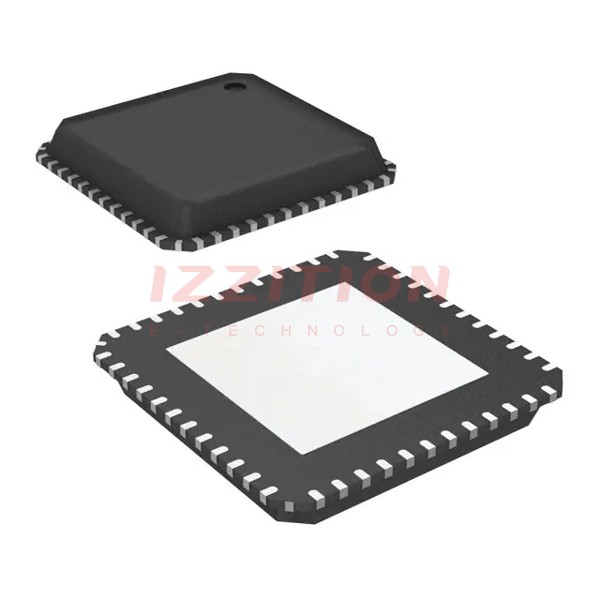

| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad |
| Supplier Device Package | PG-VQFN-48-31 | PG-VQFN-48-31 | PG-VQFN-48-31 | PG-VQFN-48-31 | PG-VQFN-48-31 |
