| Part Number | TLE95633QXXUMA1 | TLE95603QXXUMA1 | TLE95613QXXUMA1 | TLE95623QXXUMA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| Motor Type - Stepper | - | - | - | - |
| Motor Type - AC, DC | Brushless DC (BLDC) | Brushed DC | Brushed DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (3) | Half Bridge (2) | Half Bridge (4) | Half Bridge (4) |
| Interface | SPI | SPI | SPI | SPI |
| Technology | NMOS | NMOS | NMOS | NMOS |
| Step Resolution | - | - | - | - |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Current - Output | 250mA | 250mA | 250mA | 250mA |
| Voltage - Supply | 6V ~ 28V | 6V ~ 28V | 6V ~ 28V | 6V ~ 28V |
| Voltage - Load | 6V ~ 28V | 6V ~ 28V | 6V ~ 28V | 6V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

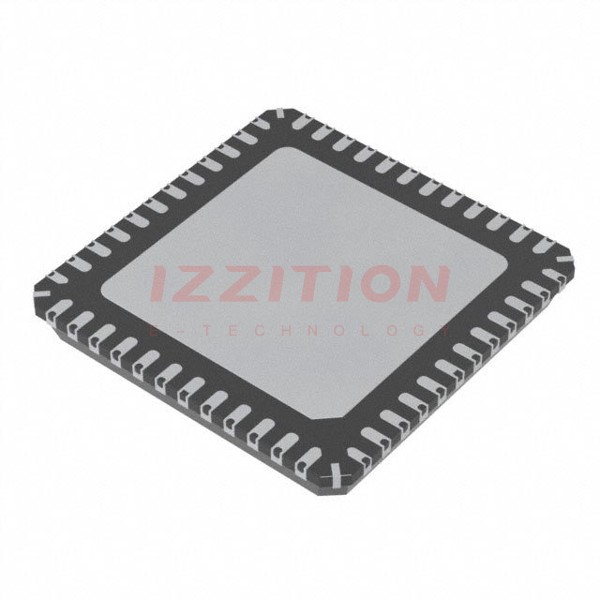

| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad |
| Supplier Device Package | PG-VQFN-48-31 | PG-VQFN-48-31 | PG-VQFN-48-31 | PG-VQFN-48-31 |
