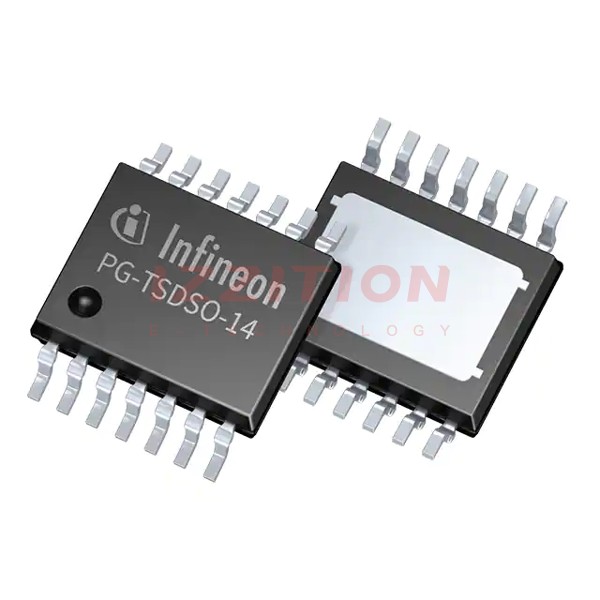

| Part Number | TLE94104EPXUMA1 | TLE94004EPXUMA1 | TLE94103EPXUMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| Output Configuration | Half Bridge (4) | Half Bridge (4) | Half Bridge (3) |
| Applications | DC Motors, General Purpose | DC Motors, General Purpose | DC Motors, General Purpose |
| Interface | SPI | Direct | SPI |
| Load Type | Inductive | Inductive | Inductive |
| Technology | Power MOSFET | DMOS | Power MOSFET |
| Rds On (Typ) | 825mOhm LS, 825mOhm HS | 825mOhm LS, 825mOhm HS | 825mOhm LS, 825mOhm HS |
| Current - Output / Channel | 2A | 2A | 2A |
| Current - Peak Output | - | - | - |
| Voltage - Supply | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Voltage - Load | 5.5V ~ 20V | 5.5V ~ 20V | 5.5V ~ 20V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Features | - | - | - |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO | Current Limiting, Over Temperature, Short Circuit, UVLO | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-TSDSO-14 | PG-TSDSO-14 | PG-TSDSO-14 |
