| Part Number | TLE84106ELXUMA1 | TLE94106ELXUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Obsolete |
| Output Configuration | Half Bridge (6) | Half Bridge (6) |
| Applications | DC Motors, General Purpose | DC Motors, General Purpose |
| Interface | SPI | SPI |
| Load Type | Inductive | Inductive |
| Technology | DMOS | Power MOSFET |
| Rds On (Typ) | 800mOhm LS, 800mOhm HS | 850mOhm LS, 850mOhm HS |
| Current - Output / Channel | - | 500mA |
| Current - Peak Output | - | 2A |
| Voltage - Supply | 3V ~ 5.5V | 3V ~ 5.5V |
| Voltage - Load | 7V ~ 18V | 5.5V ~ 20V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Features | - | - |
| Fault Protection | Open Load Detect, Over Temperature, Short Circuit, UVLO | Over Temperature, Over Voltage, UVLO |
| Mounting Type | Surface Mount | Surface Mount |

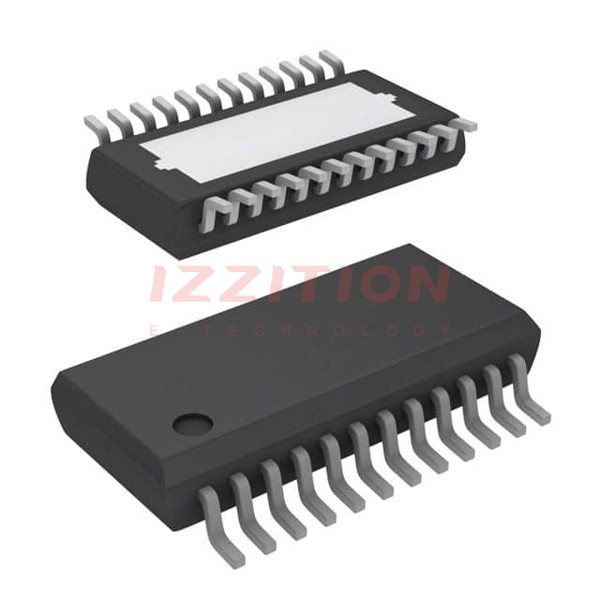

| Package / Case | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-SSOP-24-4 | PG-SSOP-24 |
