| Part Number | TLE83862ELXUMA1 | TLE8386ELXUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Not For New Designs |
| Output Type | Transistor Driver | Transistor Driver |
| Function | Step-Up | Step-Up |
| Output Configuration | Positive | Positive |
| Topology | Boost | Boost |
| Number of Outputs | 1 | 1 |
| Output Phases | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 45V | 4.75V ~ 45V |
| Frequency - Switching | 100kHz ~ 700kHz | 100kHz ~ 500kHz |
| Duty Cycle (Max) | 93% | 93% |
| Synchronous Rectifier | No | No |
| Clock Sync | Yes | Yes |
| Serial Interfaces | - | - |
| Control Features | Enable, Frequency Control, Soft Start | Enable, Frequency Control |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

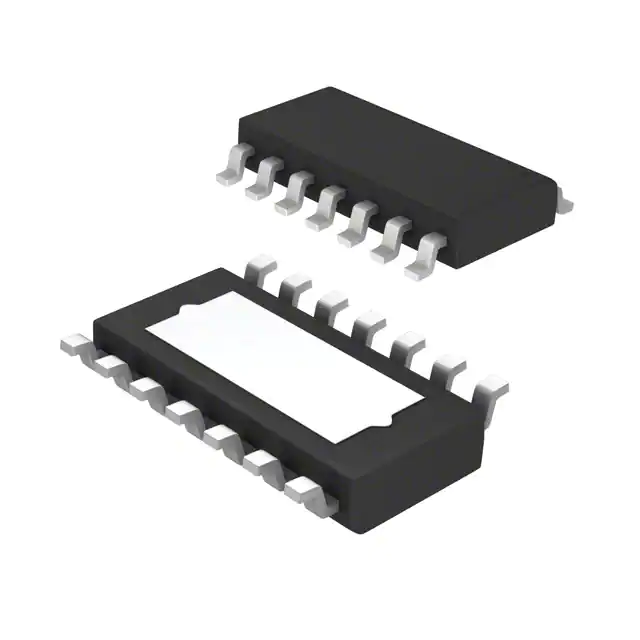

| Package / Case | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-SSOP-14-EP | PG-SSOP-14-EP |
