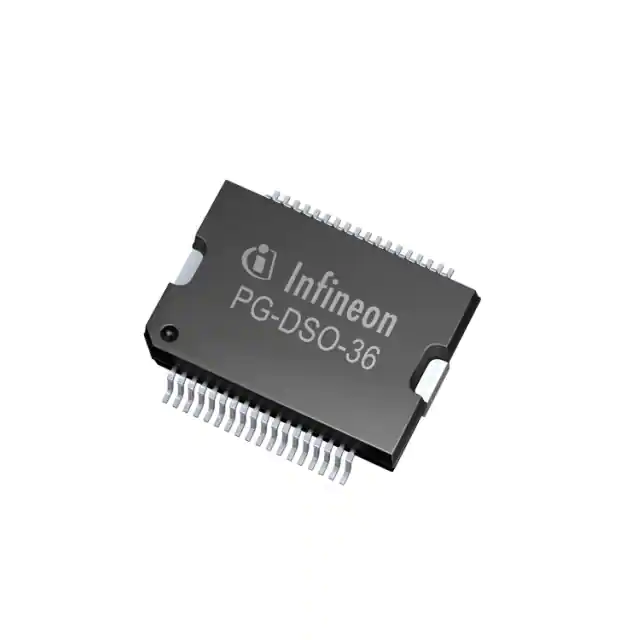

| Part Number | TLE824533SAAUMA1 | TLE82453SAAUMA1 | TLE824523SAAUMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Obsolete | Active |
| Switch Type | Relay, Solenoid Driver | Relay, Solenoid Driver | Relay, Solenoid Driver |
| Number of Outputs | 6 | 3 | 4 |
| Ratio - Input:Output | 1:3 | 1:3 | 1:2 |
| Output Configuration | High Side or Low Side | High Side or Low Side | High Side or Low Side |
| Output Type | N-Channel | N-Channel | N-Channel |
| Interface | SPI | SPI | SPI |
| Voltage - Load | 8V ~ 17V | 5.5V ~ 40V | 8V ~ 17V |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Current - Output (Max) | 1.5A | 1.6A | 1.5A |
| Rds On (Typ) | 250mOhm (Max) | 250mOhm (Max) | 250mOhm (Max) |
| Input Type | - | - | - |
| Features | Status Flag | Slew Rate Controlled | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature | Current Limiting (Fixed), Over Temperature | Current Limiting (Fixed), Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-DSO-36-54 | PG-DSO-36 | PG-DSO-36-54 |
| Package / Case | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad |
