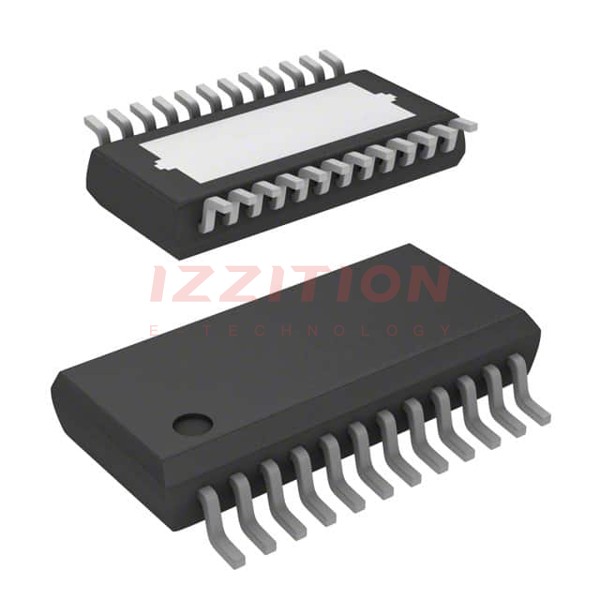

| Part Number | TLE75080EMHXUMA1 | TLE75080ESHXUMA1 | TLE75080EMDXUMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Obsolete |
| Switch Type | Relay, Solenoid Driver | Relay, Solenoid Driver | Relay, Solenoid Driver |
| Number of Outputs | 8 | 8 | 8 |
| Ratio - Input:Output | 1:8 | 1:8 | 1:8 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel |
| Interface | SPI | SPI | SPI |
| Voltage - Load | 3V ~ 28V | 3V ~ 28V | 3V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Current - Output (Max) | 330mA | 330mA | 330mA |
| Rds On (Typ) | 1Ohm | 1Ohm | 1Ohm |
| Input Type | - | - | - |
| Features | 0.10" (2.54mm) Tip Length | Slew Rate Controlled | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-SSOP-24-9 | PG-TSDSO-24-21 | PG-SSOP-24-9 |
| Package / Case | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | 24-TSSOP (0.154", 3.90mm Width) Exposed Pad | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad |
