| Part Number | TLE7183QUXUMA6 | TLE7183QUXUMA8 | TLE7183QUXUMA7 | TLE7183QUXUMA9 | TLE7183QUXUMA1 | TLE7183QUXUMA2 | TLE7183QUXUMA3 | TLE7183QUXUMA4 | TLE7183QUXUMA5 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Obsolete | Not For New Designs | Not For New Designs | Obsolete | Not For New Designs | Not For New Designs |
| Motor Type - Stepper | - | - | - | - | - | - | - | - | - |
| Motor Type - AC, DC | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) |
| Function | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) |
| Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Technology | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET |
| Step Resolution | - | - | - | - | - | - | - | - | - |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Current - Output | - | - | - | - | - | - | - | - | - |
| Voltage - Supply | 5.5V ~ 20V | 5.5V ~ 20V | 5.5V ~ 20V | 5.5V ~ 20V | 5.5V ~ 20V | 5.5V ~ 20V | 5.5V ~ 20V | 5.5V ~ 20V | 5.5V ~ 20V |
| Voltage - Load | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

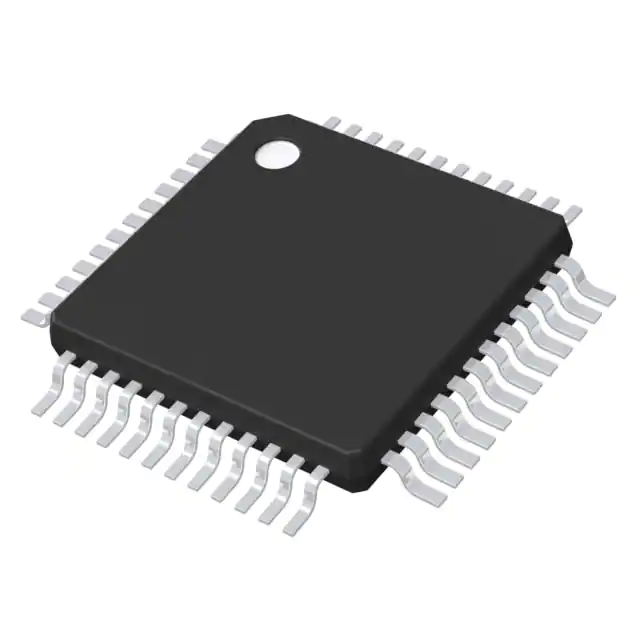

| Package / Case | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad |
| Supplier Device Package | PG-TQFP-48-8 | PG-TQFP-48-8 | PG-TQFP-48-8 | PG-TQFP-48-8 | PG-TQFP-48-8 | PG-TQFP-48-8 | PG-TQFP-48-8 | PG-TQFP-48-8 | PG-TQFP-48-8 |
