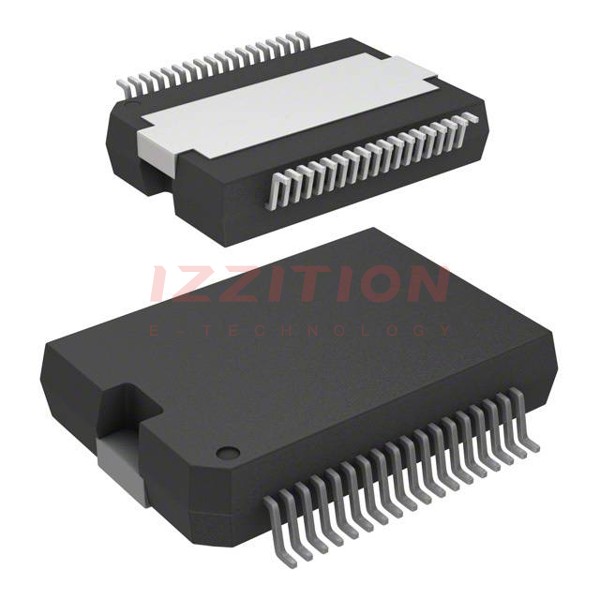

| Part Number | TLE6240GPAUMA1 | TLE6230GPAUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Obsolete |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 16 | 8 |
| Ratio - Input:Output | 1:1 | 1:8 |
| Output Configuration | Low Side | Low Side |
| Output Type | N-Channel | N-Channel |
| Interface | SPI | SPI |
| Voltage - Load | 45V (Max) | 4.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | - |
| Current - Output (Max) | - | - |
| Rds On (Typ) | 300mOhm, 350mOhm, 1Ohm | 800mOhm |
| Input Type | - | - |
| Features | Status Flag | Status Flag |
| Fault Protection | Open Load Detect, Over Temperature, Over Voltage | Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-DSO-36-48 | PG-DSO-36-12 |
| Package / Case | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad |
