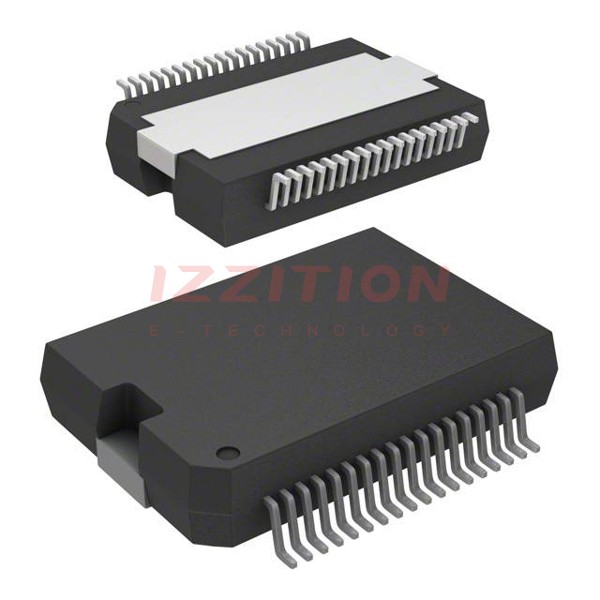

| Part Number | TLE6230GPAUMA1 | TLE6240GPAUMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Not For New Designs |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 8 | 16 |
| Ratio - Input:Output | 1:8 | 1:1 |
| Output Configuration | Low Side | Low Side |
| Output Type | N-Channel | N-Channel |
| Interface | SPI | SPI |
| Voltage - Load | 4.5V ~ 5.5V | 45V (Max) |
| Voltage - Supply (Vcc/Vdd) | - | 4.5V ~ 5.5V |
| Current - Output (Max) | - | - |
| Rds On (Typ) | 800mOhm | 300mOhm, 350mOhm, 1Ohm |
| Input Type | - | - |
| Features | Status Flag | Status Flag |
| Fault Protection | Open Load Detect, Over Temperature, Over Voltage | Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-DSO-36-12 | PG-DSO-36-48 |
| Package / Case | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad |
