| Part Number | TLE4296GV33NTSA1 | TLE4295GV33NTSA1 | TLE4296GV30NTSA1 | TLE4296GV33HTSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Obsolete | Discontinued at Digi-Key | Active |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 45V | 45V | 45V | 45V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.3V @ 20mA | 0.4V @ 20mA | 0.3V @ 20mA | 0.3V @ 20mA |
| Current - Output | 30mA | 30mA | 30mA | 30mA |
| Current - Quiescent (Iq) | 170 µA | 200 µA | 170 µA | 170 µA |
| Current - Supply (Max) | 4.5 mA | 4 mA | 4.5 mA | 5.2 mA |
| PSRR | 60dB (100Hz) | 60dB (100Hz) | 60dB (100Hz) | 60dB (100Hz) |
| Control Features | Inhibit | Power Fail | Inhibit | Inhibit |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

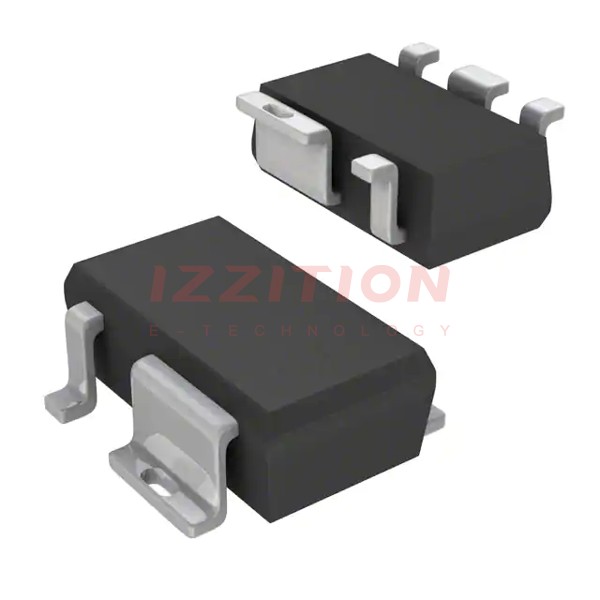

| Package / Case | 6-SMD (5 Leads), Gull Wing | 6-SMD (5 Leads), Gull Wing | 6-SMD (5 Leads), Gull Wing | 6-SMD (5 Leads), Gull Wing |
| Supplier Device Package | PG-SCT595-5 | PG-SCT595-5 | PG-SCT595-5 | PG-SCT595-5 |
