| Part Number | TLE4290G | TLE4299G |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 42V | 45V |
| Voltage - Output (Min/Fixed) | 5V | 5V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.5V @ 300mA | 0.5V @ 100mA |
| Current - Output | 450mA | 150mA |
| Current - Quiescent (Iq) | 230 µA | 105 µA |
| Current - Supply (Max) | 25 mA | - |
| PSRR | 60dB (100Hz) | 66dB (100Hz) |
| Control Features | Delay, Power Good | Reset |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

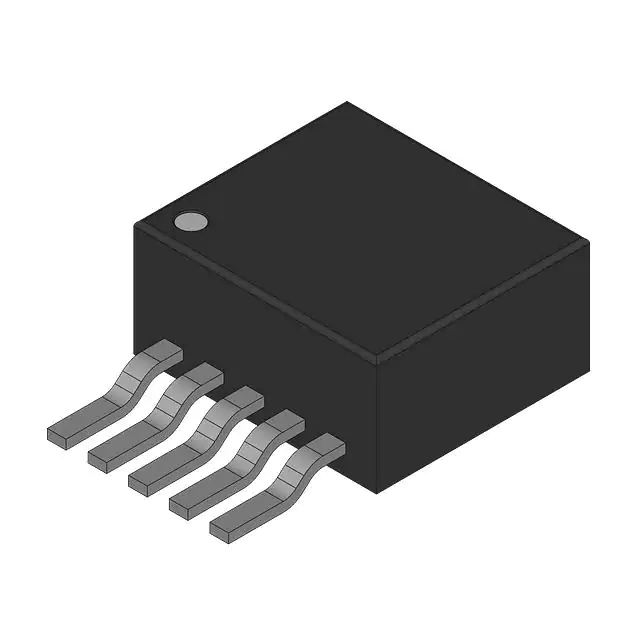

| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | PG-TO263-5-1 | PG-DSO-8-1 |
