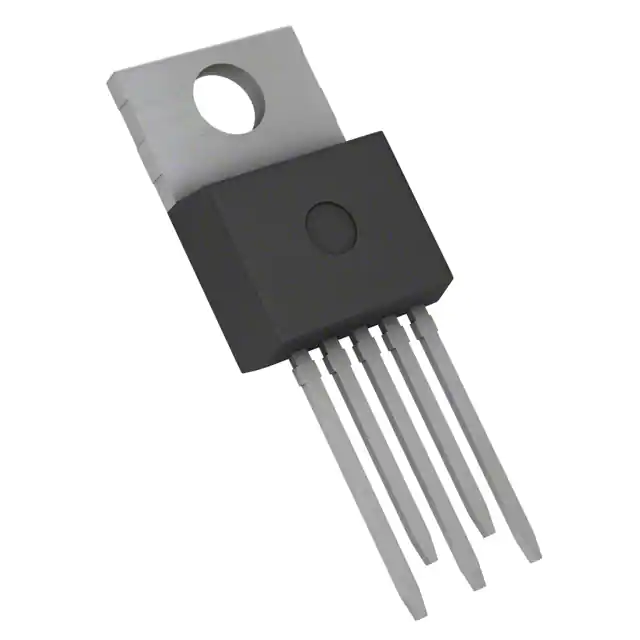

| Part Number | TLE4276SVAKSA2 | TLE4276SVAKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 40V | 40V |
| Voltage - Output (Min/Fixed) | 2.5V | 2.5V |
| Voltage - Output (Max) | 20V | 20V |
| Voltage Dropout (Max) | 0.5V @ 250mA | 0.5V @ 250mA |
| Current - Output | 400mA | 400mA |
| Current - Quiescent (Iq) | 200 µA | 200 µA |
| Current - Supply (Max) | 25 mA | 25 mA |
| PSRR | 54dB (100Hz) | 54dB (100Hz) |
| Control Features | Inhibit | Inhibit |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-220-5 | TO-220-5 |
| Supplier Device Package | P-TO220-5-43 | P-TO220-5-43 |
