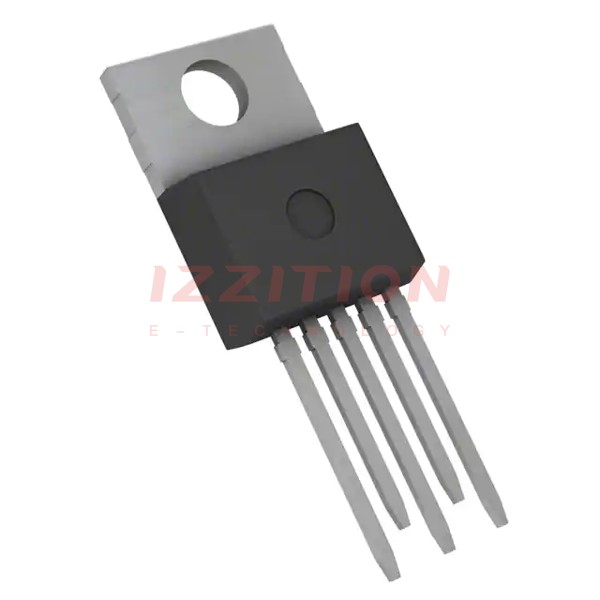

| Part Number | TLE4275S | TLE4275D | TLE4275G |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 42V | 42V | 42V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.5V @ 300mA | 0.5V @ 300mA | 0.5V @ 300mA |
| Current - Output | 450mA | 450mA | 450mA |
| Current - Quiescent (Iq) | 200 µA | 220 µA | 220 µA |
| Current - Supply (Max) | 22 mA | 22 mA | 22 mA |
| PSRR | 60dB (100Hz) | 60dB (100Hz) | 60dB (100Hz) |
| Control Features | Reset | Reset | Reset |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage | Over Current, Over Temperature, Reverse Polarity, Short Circuit | Antisaturation, Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Surface Mount | Surface Mount |
| Package / Case | TO-220-5 | TO-252-5, DPak (4 Leads + Tab), TO-252AD | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | PG-TO220-5-12 | PG-TO252-5-11 | PG-TO263-5-1 |
