| Part Number | TLE42712SAKSA1 | TLE42712SNKSA1 | TLE42702SAKSA1 | TLE42712AKSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 40V | 40V | 42V | 40V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V | 5V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.7V @ 550mA | 0.7V @ 550mA | 0.7V @ 550mA | 0.7V @ 550mA |
| Current - Output | 550mA | 550mA | 650mA | 550mA |
| Current - Quiescent (Iq) | 6 µA | 6 µA | 1.5 mA | 6 µA |
| Current - Supply (Max) | 90 mA | 90 mA | 90 mA | 90 mA |
| PSRR | 54dB (100Hz) | 54dB (100Hz) | 54dB (100Hz) | 54dB (100Hz) |
| Control Features | Reset, Watchdog | Reset, Watchdog | Reset | Reset, Watchdog |
| Protection Features | Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit | Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit, Transient Voltage | Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

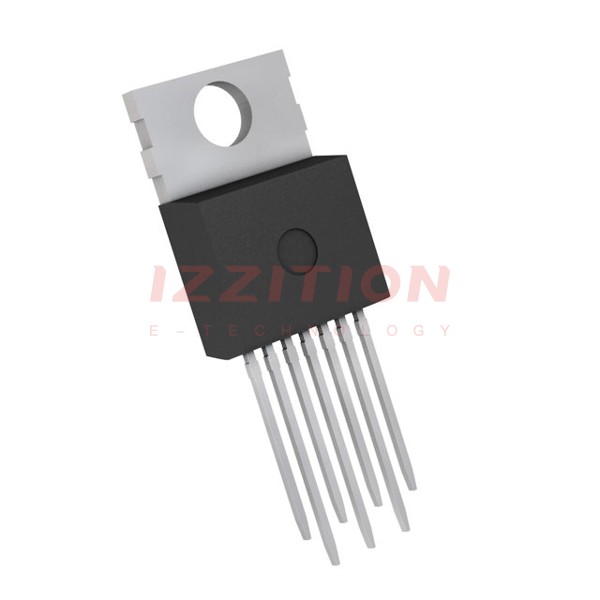

| Package / Case | TO-220-7 | TO-220-7 | TO-220-5 Formed Leads | TO-220-7 Formed Leads |
| Supplier Device Package | PG-TO220-7-12 | PG-TO220-7-12 | PG-TO220-5 | P-TO220-7-11 |
