| Part Number | TLE42672GATMA1 | TLE42672GATMA2 | TLE4267GATMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | - | Positive |
| Output Type | Fixed | - | Fixed |
| Number of Regulators | 1 | - | 1 |
| Voltage - Input (Max) | 40V | - | 40V |
| Voltage - Output (Min/Fixed) | 5V | - | 5V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.6V @ 400mA | - | 0.6V @ 400mA |
| Current - Output | 400mA | - | 400mA |
| Current - Quiescent (Iq) | 4 mA | - | 4 mA |
| Current - Supply (Max) | 80 mA | - | 80 mA |
| PSRR | 54dB (100Hz) | - | 54dB (100Hz) |
| Control Features | Inhibit, Reset | - | Inhibit, Reset |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage | - | Over Temperature, Over Voltage, Reverse Polarity, Short Circuit, Transient Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) | - | -40°C ~ 150°C |
| Mounting Type | Surface Mount | - | Surface Mount |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA | - | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |

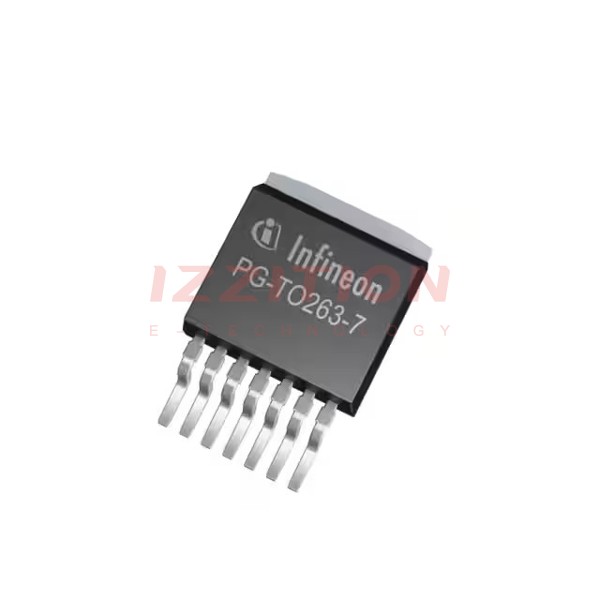

| Supplier Device Package | PG-TO263-7-1 | - | PG-TO263-7-1 |
