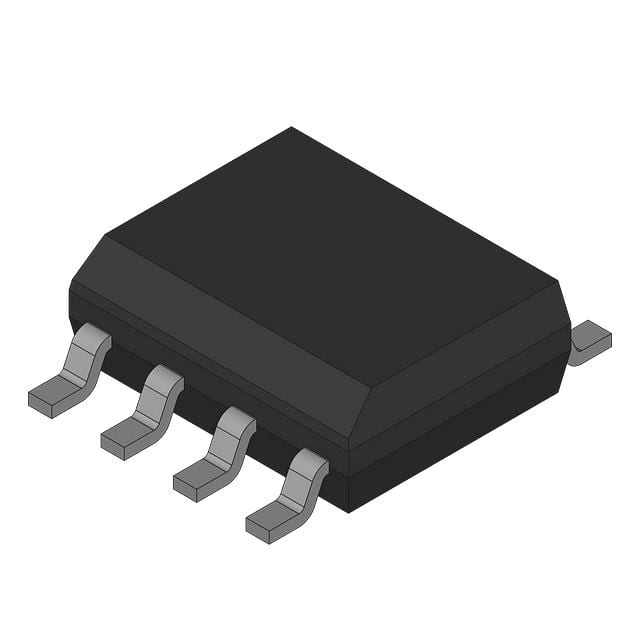

| Part Number | TLE4254EJA | TLE4254EJS |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 45V | 45V |
| Voltage - Output (Min/Fixed) | 2V | 2V |
| Voltage - Output (Max) | 45V | 45V |
| Voltage Dropout (Max) | 0.4V @ 70mA | 0.4V @ 70mA |
| Current - Output | 70mA | 70mA |
| Current - Quiescent (Iq) | 80 µA | 80 µA |
| Current - Supply (Max) | 15 mA | 15 mA |
| PSRR | 60dB (100Hz) | 60dB (100Hz) |
| Control Features | Enable | Enable |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-DSO-8 | PG-DSO-8 |
