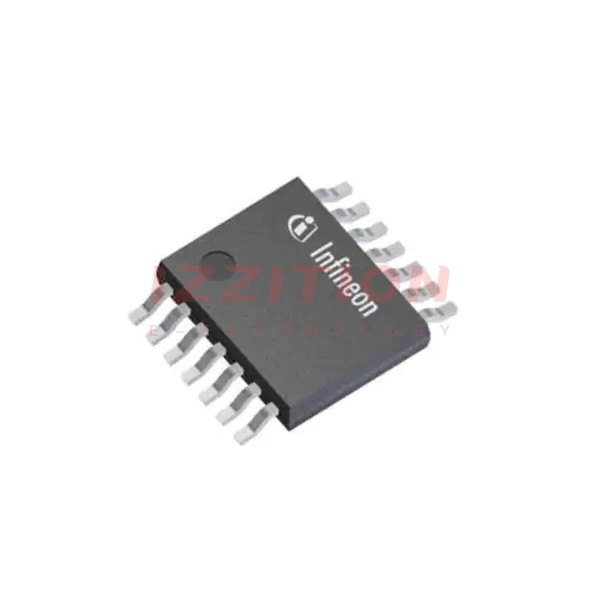

| Part Number | TLD5098EPXUMA1 | TLD5099EPXUMA1 | TLD5097EPXUMA1 | TLD5098ELXUMA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Not For New Designs |
| Type | DC DC Controller | DC DC Controller | DC DC Controller | DC DC Controller |
| Topology | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | No | Yes | No | No |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Supply (Min) | 4.5V | 8V | 4.5V | 4.5V |
| Voltage - Supply (Max) | 45V | 34V | 45V | 45V |
| Voltage - Output | 4.5V ~ 5.5V | - | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Output / Channel | 90mA | - | 90mA | - |
| Frequency | 100kHz ~ 500kHz | 100kHz ~ 500kHz | 100kHz ~ 500kHz | 100kHz ~ 500kHz |
| Dimming | Analog, PWM | PWM | Analog, PWM | Analog, PWM |
| Applications | Automotive | Automotive, Lighting | Automotive | Automotive |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-TSDSO-14 | PG-TSDSO-14 | PG-TSDSO-14 | PG-SSOP-14-EP |
