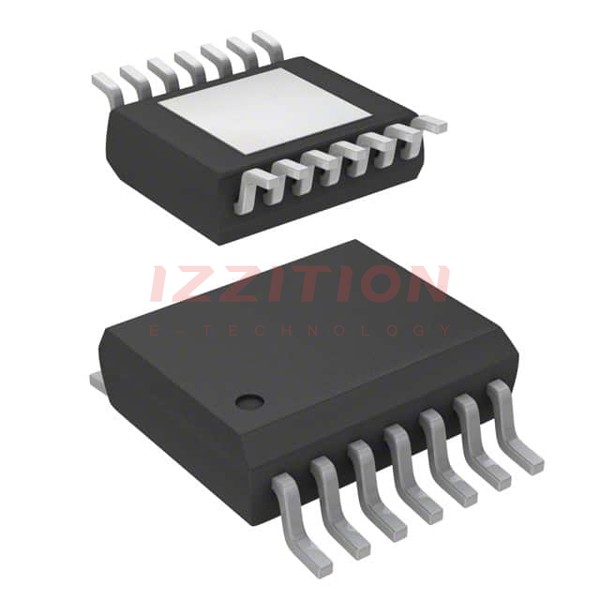

| Part Number | TLD1313ELXUMA1 | TLD1314ELXUMA1 | TLD1315ELXUMA1 | TLD1310ELXUMA1 | TLD1311ELXUMA1 | TLD1312ELXUMA1 |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Not For New Designs | Active | Not For New Designs | Not For New Designs |
| Type | Linear | Linear | Linear | Linear | Linear | Linear |
| Topology | - | - | - | - | - | - |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes | Yes |
| Number of Outputs | 3 | 3 | 3 | 3 | 3 | 3 |
| Voltage - Supply (Min) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Supply (Max) | 40V | 40V | 40V | 40V | 40V | 40V |
| Voltage - Output | 40V | 40V | 40V | 40V | 40V | 40V |
| Current - Output / Channel | 120mA | 120mA | 120mA | 120mA | 120mA | 120mA |
| Frequency | - | - | - | - | - | - |
| Dimming | - | - | PWM | - | - | PWM |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-SSOP-14-5 | PG-SSOP-14-EP | PG-SSOP-14-5 | PG-SSOP-14-5 | PG-SSOP-14-5 | PG-SSOP-14-5 |
